Product Summary:
 4-Cplor 24" Wide Printing
Up to Res 1200 x 2400 dpi
Holds up to 100 Letter Sheets
1 GB Standard Memory
Max. Roll Diameter 110mm
USB, Network & Wireless
One Year On-site Warranty
Product Description:

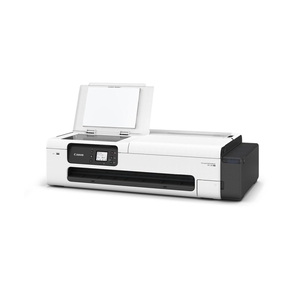

A large-format, compact and sustainable 24” desktop printer with versatile functionality for small offices, retail shops, schools and other industries.
Unlock large format potential from small spaces
Take your business to another level with large format printing from a 24-inch desktop device. Scan, copy, repeat images and enlarge prints from anywhere to meet various demands of the architectural, education, retail and hospitality industries.
Versatile functionality
Make use of an A4 flatbed scanner with enlarge, copy and repeat functions to create a range of output including educational material, flyers and personalised wrapping paper.
Print in superior quality
High-quality pigment ink prints, without the price tag. Use the added scanning function and free PosterArtist app to produce professional prints of all sizes (including posters, flyers and menus) without relying on digital source files.
Smooth workflows
Easily set up roll paper with a shaftless roll holder and use the built-in auto-sheet feeder to keep prints moving without intervention. Print from a USB1 without PC operation and produce large format prints with the intuitive, easy-to-use scanning function.
Best office support
Brings more values than typical office devices with scanning, copying and printing with cut sheets or roll paper, all-in-one. Besides printing standard documents, you can expand prints to large format like notifications and posters, up to A1 size.
Specifications
A4 flatbed scanner With 1200x2400dpi, you can scan A4 size documents and produce enlarged prints
Versatile functionality Scan, copy, repeat images and enlarge printing functionalities help produce a range of outputs, even from small physical prints
USB direct print and scan Can operate without PC
4-colour New black, cyan, magenta and yellow pigment ink
Compact size 968 x 525 x 245 mm
Built-in Auto sheet feeder Continuous printing between roll paper and cut sheets
Shaftless roll holder Easy to set up roll paper, with less space needed
Best office support Brings more values than office devices with scanning, copying and printing with cut sheets or roll paper, all-in-one.
EPEAT Gold2 rating Meet your sustainability goals with reduced packaging and lower energy consumption
Specifications in detail
Scanner Technology
Scan Technology Flatbed CIS colour scanner
Maximum Resolution (dpi) Main scan X sub scan: 1,200 x 2,400 dpi*
*Optical resolution is based on the ISO 14473 standard and represents the maximum sampling rate for scanning documents.
Scanning Depth (Input/Output) Colour: RGB each 16bit / each8bit Greyscale: 16bit / 8bit
Line Scanning Speed Colour: 3.5 ms/line at 300 dpi Grayscale / Monochrome: 1.5 ms/line at 300 dpi
Maximum Document Size A4/LTR(216 x 297mm)
Printer Technology
Printer Type 4 Colour 24"
Print Technology Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each
Line Accuracy ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Capacity Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) Sales Ink: 70ml (BK, C, M, Y)
Ink Type Pigment inks : 4 colour BK/C/M/Y
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.14.6～macOS 12.x
Other Supported Job Submission Protocols Apple AirPrint, Mopria, Chrome OS
Printer Languages USB Memory Direct Print1: PDF, JPEG (Exif ver2.2/2.21/2.3)
Standard Interfaces
USB A Port: USB Memory (Direct Print) - PDF/JPEG (Exif ver2.2/2.21/2.3)
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
Wireless LAN*: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to the user manual how to activate / deactivate the wireless LAN
Memory
Standard Memory 1GB Expansion slot : No
Hard Drive N/A
Print Speed
CAD Drawing Plain paper (A1, B&W): 0:33 (Standard)
Plain Paper (A1, Colour): 1:03 (Standard)
Poster
Plain Paper (A1)
1:10 (Fast)
2:08 (Standard)
Coated Paper (A1)
3:10 (Fast)
6:05 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Front-loading, Front Output
Cut Sheet : Auto sheet feeder
Media Width
Roll paper : A3, A2, A2+, A1, B2, B3, 18'', 24'', 17''
Cut sheet: 210mm - 297mm
Media Thickness Roll/Cut : 0.08mm - 0.28mm
Minimum Printable Length Roll/Cut : 203.2mm
Maximum Printable Length
Roll paper : 4m
Cut sheet : 432mm
Maximum Media Roll Diameter 110mm
Media Core Size Internal diameter of roll core:
Margins Recommended Area
Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
(some photo mode: Top: 30mm, Bottom: 30mm)
Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Margins Printable Area
Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
(some photo mode: Top: 30mm, Bottom: 30mm)
Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Media Feed Capacity Roll Paper: One roll Cut Sheet: 100 sheets(A4), 50 sheets (A3)
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only) N/A
Maximum Number of Delivered Prints Desktop Basket (BU-06): Standard position - 1 sheet
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation: 28W or less
Sleep mode: 2.4W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.3W or less
Operating Environment
Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
Operation: Approx. 41.5 dB(A) (Plain paper, Standard mode, Line Drawing/Text mode)
Standby: 35 dB(A) or less
(Measured on ISO 7779 standard)
Regulations
CE mark, UKCA mark
Environment Certificates CB certfication, EPEAT GOLD2
Dimensions and Weight
Physical Dimensions and Weight
W x D x H Main Unit
968 x 545 x 395 mm (ASF Opened)
968 x 525 x 245 mm (ASF Closed)
33 kg (exclude ink bottle, include print head)
Main Unit + Desktop Basket (BU-06)
968 x 825 x 965* mm (Basket Opened)
968 x 525 x 965* mm (Basket Closed)
34 kg (exclude ink bottle, include print head)
*Height above which cloth does not touch the floor when opening the desktop basket
Main Unit + Stand + Basket (SD-24)
968 × 870 × 874 mm (Basket Opened)
968 × 707 × 874 mm (Basket Closed)
42 kg (exclude ink bottle, include print head)
Packaged Dimensions and Weight
Printer (Main unit): 1120 x 726 x 406 mm, 45kg
Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg
Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg
What's Included
What's in the Box?
Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, EU Biocide Sheet, LFP Eur Address Sheet, Flange protective materials sheet
Software Included Software available as Download from Web
Options
Optional Items
Desktop Basket: BU-06
Printer Stand and Basket: SD-24
Consumables
User Replaceable Items
Ink Tank: PFl-050 (70ml)
Print Head: PF-08
Maintenance Cartridge: MC-32
|
