Product Summary:
 Up to Print Speed 100mm/sec.
Up to Res 203 x 203 dpi
10 Million Printing Lines
51mm Msx. Roll Diameter
Power LED Indicators
USB, Network & Wireless
2 Year Return to Base Warranty
Product Description:
The ultra compact and lightweight 2" wireless portable receipt printer | Portable and lightweight - ultra compact, easy for users to wear (belt clip included); helps prevent carry fatigue
Robust design - IP54-rated enclosure is water- and dust-resistant; holds up to rigorous use, with a drop rating of 2.1 metres
Long-lasting battery life - up to 27 hours on a full charge (battery and USB-C cable included)
Fast battery charging capability - fully charges as fast as 3 hours (charger sold separately)
Versatile connectivity - wireless connectivity options (Wi-Fi® 5 or Bluetooth® 5.0) to provide connections to a wide variety of devices and networks
Exceptional print quality and ultra fast print speed - quickly produce sharp and crisp text, barcodes and logos at up to 100 mm/sec
Modern design - sleek design suited to complement your business
Enhance your printing with accessories - choose from a wide range of optional accessories, such as single or quad battery charger, spare battery, belt strap, shoulder strap and soft carrying case (each sold separately)
World-class service and support - 2-year warranty
Paper Saving Mode - helps reduce cost by decreasing paper usage
Features
Ideal to be used in field service, and in any application that has a need to print on the go
Produce high-quality documents with this monochrome printer to increase your productivity
A smart and inexpensive solution to print temporary documents
Conveniently print your receipts
Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
Technical Specs
Battery Information
Battery Included Yes
Technical Information
Application/Usage Mobile
Desktop
Barcode Symbology Supported GS1 DataBar Omnidirectional
GS1 DataBar Truncated
GS1-128
ITF
JAN-13
JAN-8
Maxi Code
PDF417
QR Code
UPC-A
UPC-E
EAN-8
GS1 DataBar Expanded
GS1 DataBar Limited
EAN-13
Data Matrix
Composite Symbology
Code 93
Code 39
Code 128
Codabar (NW-7)
AZTEC
Maximum Print Width 58 mm (2.28")
Recommended Use Receipt Print
Connectivity Technology Wireless
Features Compact
Belt Clip
Dust Resistant
Lightweight
Water Resistant
Print Color Capability Monochrome
Fonts Included Font B: 9 x 24, 42 cpl (default)
Font C: 9 x 17, 42 cpl
Font A: 12 x 24, 32 cpl
Font E: 8 x 16, 48 cpl
Font D: 10 x 24, 38 cpl
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
Cutter
Cutter Yes
Interfaces/Ports
USB Yes
Power Description
Power Source Battery
Warranty
Additional Warranty Information Standard 2-year RTB warranty, with optional extended service plans available
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/ac/b/g/n
Wi-Fi Direct Yes
Network Ready Yes
Near Field Communication (NFC) Yes
Media Types & Handling
Maximum Roll Diameter 51 mm
Media Type Receipt
Roll Paper
Thermal Paper
Media Sensor Cover Open Sensor
Paper End Sensor
Physical Characteristics
Weight (Approximate) 227 g
Form Factor Portable
Height 46 mm
Width 79 mm
Depth 120 mm
Product Color Black
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CJ99811
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-P20II

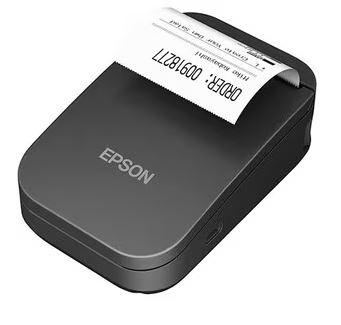

Product Name TM-P20II 2" Wireless Portable Receipt Printer
Brand Name Epson
Miscellaneous
Package Contents
TM-P20II 2" Wireless Portable Receipt Printer
Battery (OT-BY20)
Belt Clip (Attached to Printer)
Starter Roll Paper
USB-C Cable
Documentation
Platform Supported Android
iOS
PC
Certifications & Standards
EMI FCC Class B
ICES-003 Class B
Safety standard UL62368-1/CAN/CSA C22.2 No.62368-1
Environmentally Friendly Yes
Noise Level 53 dB
|
