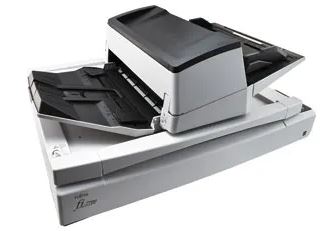

Fujitsu Image fi-7700 A3 Document Scanner |
| Ricoh FI-7700 Document Scanner (A3, Duplex) 100 PPM, 300 Sheet ADF, USB3.1 |
| Price: |
$14,520.00
|
| Code: FI-7700-PS |
| Availability : In Stock |
| |
|
|
|
| |
|
|
|
|
Product Summary:
100ppm Simplex & 200ipm Duplex
Up to Optical Resolution 600 dpi
300 Sheets ADF Capacity
6 x White LED Light Source
30K Sheets Daily Duty Cycle
30K Sheets Daily Duty Cycle
One Year Limited Warranty
Product Description:
The fi-7700 allows you to scan A4 landscape documents at 100 ppm/200 ipm
(200/300 dpi). The scanner is suitable for continuous scanning because
it allows you to load up to 300 sheets at a time which improves
efficiency when scanning a large volume of documents. In addition,
various types of documents, such as thin paper, plastic cards, books,
magazines, envelopes, and long page documents can be scanned on this
scanner.
Specifications
Description fi-7700
Functional Specifications
Image Sensor Type Color CCD (Charge-coupled device) x 3 (front x 1, back x 1, Flatbed x 1)
Light Source White LED Array x 6 (front x 2, back x 2, Flatbed x 2)
Multifeed Detection Ultrasonic multi-feed detection sensor, Paper detection sensor
Optical Resolution 600 dpi
Output resolution(1) Color (24-bit) 50 to 600 dpi
(adjustable by 1 dpi increments), 1,200 dpi (driver)(2)
Grayscale (8-bit)
Monochrome
Output format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing 4,096 levels (12-bit)
Processing Functions Multi image output, Automatic color detection,
Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC,
Error diffusion, De-Screen,Emphasis, Halftone, Dropout color (None / Red
/ Green / Blue / White / Saturation / Custom), sRGB output, Hole punch
removal, Index tab cropping, Split image, De-Skew, Edge correction,
Vertical streaks reduction, Cropping, Dither, Static threshold, Divide
Long Page
Scanning Speed(3)
(A4 Landscape) ADF Color(4)
Grayscale(4)
Monochrome(5) Simplex: 100 ppm, Duplex: 200 ipm
(200 dpi / 300 dpi)
Flatbed Color(4)
Grayscale(4)
Monochrome(5) 0.6 Seconds (200 dpi / 300 dpi)
Scanning Speed(3)
(A4 Portrait) ADF Color(4)
Grayscale(4)
Monochrome(5) Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
Flatbed Color(4)
Grayscale(4)
Monochrome(5) 0.9 Seconds (200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape)(6) 300 Sheets (A4: 80 g/m² or 20 lb.)
Background Colors ADF White / Black (switching with command available)
Flatbed White (switching to optional black available)
Document Size Minimum 50.8 mm x 69 mm (2 in. x 2.72 in.)
Maximum 304.8 mm x 431.8 mm (12 in. x 17 in.)
Long page scanning(7)
(Maximum) 304.8 mm x 5,588 mm (12 in. x 220 in. )
Flatbed
(Maximum) 304.8 mm x 457.2 mm (12 in. x 18 in. )
Paper Weight
(Thickness)(8) Paper 20 to 413 g/m² (5.3 to 110 lb.), A8 size: 128 to 209 g/m² (34 to 56 lb)
Plastic Card Up to 1.4 mm (9)
Interface USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1
Minimum PC Specification CPU: Intel® Core i5 2400S @ 2.5Ghz
Memory: 4.0GB
OS:Windows® 7 SP1 (32-bit)
Software: PaperStream Capture
Physical Specifications
Power Requirements 100 to 240 VAC ± 10 %
Power Consumption Operating: 64 W or less, Sleep mode: 1.7 W or less, Auto Standby(OFF) mode: Less than 0.35 W
Dimensions (WxDxH)(10) 706 mm x 500 mm x 345 mm (27.8 in. x 19.7 in. x 13.6 in.)
Weight 35 kg (77.2 lb.) or less
Environmental Compatibility ENERGY STAR® / RoHS
Operating Environment Temperature 5 °C to 35 °C (41 °F to 95 °F )
Relative Humidity 20 % - 80 % (non-condensing)
Included Items ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Included
Software / Drivers PaperStream IP (TWAIN/ISIS) ,2D Barcode for
PaperStream(11), Software Operation Panel, Error Recovery Guide,
PaperStream Capture, ScanSnap Manager for fi Series(11), Scan to
Microsoft SharePoint(11), ABBYY FineReader for ScanSnap(11), Scanner
Central Admin
Options Black Document Pad (fi-575BK), PaperStream Capture Pro
Supported
Operating Systems Windows® 10 (32-bit/64-bit), Windows® 8.1
(32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016
(64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012
(64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008
(32-bit/64-bit)
|
Download .pfd brochure for Fujitsu Image fi-7700 A3 Document Scanner
Image may differ from actual product
|
