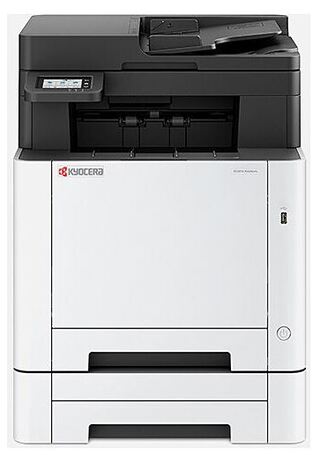

Kyocera ECOSYS MA2101cfx A4 Colour Multi function, Laser Printer



Enterprise-level information security to protect against threats

Integration of personal cloud storage services

Print speed up to 21 ppm b&w and 21 ppm colour

Optional additional paper feeder for a total of 550 sheets

2.7-inch touch screen for easy operation



Kyocera solutions always work with the environment in mind, but the ECOSYS range does this more than any other product.



Kyocera provides the industry’s most comprehensive line of award-winning low to high-volume devices.



High quality, high reliability and high efficiency are essential.



Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.



General type Colour multifunctional for A4 format

Engine speed Up to 21 pages A4 per minute in colour and b/w

Warm-up time Approx. 32 seconds or less

Power consumption Copy / Print: 345 W, Ready mode: 33 W, Sleep mode: 0.3 W

Warranty 2 years return-to-base as standard. Optional upgrade to on-site available.



Input capacity 50-sheet multi-purpose tray at 80 g/m²; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm–216 x 356 mm) 250-sheet universal cassette at 80 g/m²; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148–216 x 356 mm)

Max. input capacity with options 550 sheets at 80 g/m²

Duplex unit Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal

Output capacity 150 sheets face-down with paper full detection

Document processor 50-sheet, 60-90 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)



Processor ARM Cortex-A53 single core 1.0GHz

Fonts 94 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

Applicable OS (Print) All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request



Continuous copy 1 – 999

Zoom range 25 - 400 % in 1% steps

Preset magnification ratios 7 Reductions/5 Enlargements

Image adjustments Text + Photo, Photo, Text, Map, Printed document

Digital features Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control



Scan functionalities Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)

Scan speed 27 ipm (300 dpi, A4, b/w), 22 ipm (300 dpi, A4, colour)

Scan features Integrated address book, Active directory support, encrypted data transfer, Blank sheet skip

Scan resolution 600, 400, 300, 200 dpi (256 grey scales per colour)

Max. scan size A4 / legal

Scan File type TIFF, PDF, PDF/A , high compression PDF, encrypted PDF, JPEG, XPS

Original recognition Text + Photo, Photo, Text, Light Text, Text (for OCR)



Compatibility ITU-T Super G3

Modem speed Max. 33.6 kbps

Scanning speed 2 seconds /sheet or less

Scanning density Normal: 200 x 100 dpi,Fine: 200 x 200 dpi,Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi

Fax Max. Original size A4 / legal

Fax features Network fax, duplex transmission and reception,polling transmission and reception



PF-5110 Paper feeder

Capacity in sheets 250 sheets

Dimensions (W x D x H) 410 x 447.5 x 147 mm

Paper size 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148 mm – 216 x 356 mm)



TK-5484K Average continuous black toner yield 1,250 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5484C Average continuous cyan toner yield 1,250 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5484M Average continuous magenta toner yield 1,250 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5484Y Average continuous yellow toner yields 1,250 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5494K Average continuous black toner yield 2,800 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5494C Average continuous cyan toner yield 2,400 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5494M Average continuous magenta toner yield 2,400 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

TK-5494Y Average continuous yellow toner yields 2,400 pages A4 in accordance with ISO /IEC 19798. Starter toner yield: 1,500 pages A4.

PCL Barcode SD Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, and OCR-B)

UG-33 AC ThinPrint support (Licence)

USB IC Card Reader + Card Authentication Kit (B) AC Support for various authentication keys available

UG-51 TPM (Trusted Platform Module)
