Product Summary:
 Print Width 103.89mm (4.09")
Up to Max. Resolution 300 dpi
512 MB Standard Memory
ZPL II, ZPL & ZBI 2.0 Languages
4.3" 10.9cm Touch Screen
USB, Bluetooth & Ethernet
One Year Limited Warranty
Product Description:
Mission critical doesn't compromise - neither do Zebra print engines
Your lines and equipment must stand up to the 24/7/365 test, but you need more than just durable performance. Keep your operations moving forward with Zebra's rugged ZE511 and ZE521 print engines, intelligently engineered to make your work easier - today and tomorrow. These purpose-built essential workers deliver it all: fast print speeds and all-metal construction for demanding operation, innovative features and forward capabilities for years of use, onboard analytics and expedited maintenance elements to maximize uptime, along with optional field-installable RFID encoding for advanced tracking. And, they feature Zebra's exclusive, industry-leading Print DNA software suite that makes them easy to setup, manage, maintain and secure - onsite or remotely. So, go ahead. Push the limits. A Zebra print engine won't let you down.
Innovation has Arrived
Extending the ZE500 Series legacy
Advancing the ZE500 Series, ZE511 and ZE521 print engines build on this proven legacy with faster print speeds, performance-enhancing capabilities and evolving intelligence that make them stand apart. Added features such as the 4.3-inch, full-color LCD touch screen make operation easier. Add field-installable RFID printing and encoding capabilities featuring Zebra's exclusive technology and new algorithms for easy calibration and media flexibilit
Engineered to Endure
Encased design withstands harsh environments
The 4-inch ZE511 and 6-inch ZE521 deliver rugged durability to push the limits. Engineered without the need for cooling fans, their external cabinets are designed to resist debris and water ingress making them ideal in dusty environments or where water may be splashed.
Easy to Use
Simple to integrate and operate
The ZE511 and ZE521 are incredibly easy to integrate and use. Deploy them anywhere with setup tools, wizards and emulation capabilities. The large color touch screen and intuitive user interface make setup and operation easy with minimal training. Mount the screen where it's convenient for you, up to two meters from the print engine, and rotate the screen to match your space. See printer status at a glance, make expedited settings changes and access support.
Put it to Work for Years
Forward focused to match your evolving business needs
Printers should add to your operations, not create obstacles. Remove the hassle with the ZE511 and ZE521, engineered to handle tomorrow's technology. With the revolutionary Print DNA software suite, they have the innovative edge to grow with your business.
Features
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
Produce high-quality documents with this monochrome printer to increase your productivity
Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
Delivers high-speed, hassle-free labelling solution for your business needs
Technical Specs
Memory
Standard Memory 512 MB
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Code 128 (A/B/C)
Code 39
Code 49
Code 93
Data Matrix
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
Micro PDF
MSI
PDF417
Planet Code
Plessey
POSTNET
QR Code
RSS-14
Standard 2 of 5
TLC 39
UCC Case Codes
UPC-A
UPC-A with EAN 2 or 5 Digit Extension
UPC-E
AZTEC
Codabar
Codablock
Code 11
Maximum Print Width 103.89 mm (4.09")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features LCD Display
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 1854 mm
Character Sets Unicode
850
Optional Connectivity Parallel
Wireless LAN
Real Time Clock Yes
Maximum Print Resolution (dpi) 300
Power Description
Power Source AC Supply
Fonts & Emulation
Language Emulation ZPL II
ZPL
ZBI 2.0
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Touchscreen Yes
Display Screen Type LCD
Physical Characteristics
Weight (Approximate) 14.70 kg
Height 300 mm
Width 245 mm
Depth 379 mm
Miscellaneous
Platform Supported PC
Certifications & Standards Standards approvals: IEC 62368-1; EN 55032, Class A; EN 55035; EN 61000-3-2, 3-3 Product markings, but not limited to: cTUVus; CE; FCC A; ICES-003; VCCI; RCM; CCC; EAC; S-Mark; KCC; BSMI; India-BIS; In-Metro; Energy Star
Energy Star Yes
Power Cable Localization UK
JP
AUS
EU
General Information
Product Type Direct Thermal/Thermal Transfer Printer
Manufacturer Part Number ZE51143-R0P0000Z
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZE511

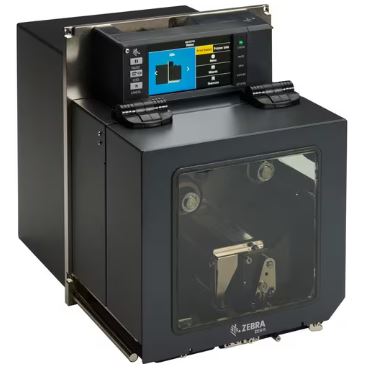

Product Name ZE511 Direct Thermal/Thermal Transfer Printer
Product Series ZE500
Brand Name Zebra
Media Types & Handling
Media Thickness 254 µm
Media Type Label
Die-cut Label
Continuous Label
Black Mark
Media Sensor Reflective Media Sensor
Transmissive Media Sensor
Maximum Label Width 114 mm
|
