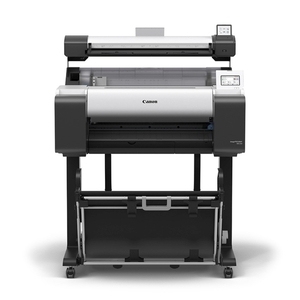

Canon imagePROGRAF TM-250 Lm MFP 36" Large Format Inkjet Printer

The Canon imagePROGRAF TM-250 Lm MFP is a versatile multifunction printer that seamlessly integrates powerful printing and scanning capabilities, offering a comprehensive solution for your office needs. With the ability to scan to copy, scan to USB, and the unique feature of printing and scanning simultaneously, this MFP optimizes efficiency and streamlines your workflow. The three quality modes ensure flexibility in meeting diverse printing requirements, while the optical resolution of up to 600dpi guarantees sharp and clear scans. Accommodating media thicknesses of up to 0.8mm, this printer opens up possibilities for various printing applications. The ScanAppL software further enhances user convenience, allowing for easy saving of scanned data directly to USB in TIFF, PDF, and JPEG file formats. The Canon imagePROGRAF TM-250 Lm MFP is a reliable and feature-rich solution that combines advanced scanning capabilities with efficient printing for a seamless office experience.





Print and scan seamlessly with an easy-to-use multi-tasking device, featuring a 3” touchscreen panel on the scanner and dedicated software, for parallel processing with printing and scanning simultaneously.



The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more.



Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device.



Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover.

Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.

Print Head PF-06

MBK: 5,120 nozzles

BK/C/M/Y: 2,560 nozzles

Droplet Size Minimum 5pl per color

Ink Type Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)

Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)

Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)

Printer RAM 2 GB

Roll Feed: One Roll, Top-loading, Front Output

Cut Sheet: Top-loading, Front Output

Roll Paper:

ISO A3, A3+, A2, A2+, A1

JIS B4, B3, B2

ARCH 12”, 18”, 24” 12”, 18”, 24”

Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”, 300mm, 500mm, 600mmx`

Cut Sheet

ISO A4, A3, A3+, A2, A1, B4, B3, B2

DIN C4, C3, C2

JIS B4, B3

ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”, 17 x 22”, 22 x 34”

ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”

Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)

Poster 20 x 30”, 300 x 900mm

Others 13 x 22”

Automatic horizontal cutting (Rotary Cutter)

Media Thickness 0.07 – 0.8 mm

Media Core Sizes 2” or 3” Core

Maximum Roll Outer Diameter 150mm or less

Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,

imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,

PosterArtist Web/PIXMA Cloud Link

Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows

Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7

– macOS Ventura 13

SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4

Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer

Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)

Wireless LAN: IEEE 802.11 b/g /n

AC 100–240V (50 – 60 Hz)

Power Consumption

Power Consumption (using wired LAN) Approx 62W

Standby (using wired LAN) Approx 1.6W

Power Off Approx 0.1W

Temperature: 15°-30° C

Relative Humidity: 10-80%

(Non Condensation).

(W x D x H) and Weight

Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm

Weight (with Stand) 54.5 kg

(W x D x H) and Weight

Printer Package Dimensions (W x D x H) with pallet 1152 x 913 x 679mm

Printer Package Weight 73kg

Stand Package Dimension 1058 x 826 x 270 mm

Stand Package Weight 22kg

Roll Holder RH2-28

Ink Tank PFI-120 C/Y/BK/MBK, PFI-121 M, PFI-320 C/Y/BK/MBK, PFI-321 M,

Maintenance Cartridge MC-31

Cutter Blade CT-08

Scanner Lm24

Max Scan Speed (for scan) 200dpi Draft = 1ips colour, 3ips mono

Max Scan Speed (for copy) 300dpi Draft = 1ips colour, 3ips mono

Colour Space sRGB

Maximum Resolution 600dpi

Scan Accuracy 0.2% +/- 1 pixel

Minimum/Maximum Scan Width 6.2”/24”

Minimum/Maximum Scan Length 8cm/2.77 m

Minimum/Maximum Media Thickness 0.07mm/0.8mm

Included Software ScanAppL

Scanner Dimensions (W x D x H) 935 x 253 x 131 mm

Scanner Weight 5.28kg

Scanner Package Dimension 1030 x 280 x 205 mm
