Product Summary:
 Up to Print Res 203 x 203 dpi
Up to Print Res 203 x 203 dpi
65 Million Lines MCBF
95 Alphanumeric Character
Automatic Cutting Method
USB, Network & Wireless
2 Year Limited Warranty
Product Description:

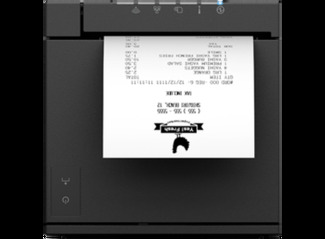

Sleek, stylish and compact – The ideal solution for tablet POS environments
Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.
KEY FEATURES & BENEFITS
Sleek, compact and stylish design
Flexible placement – place horizontally or vertically
NFC & Barcode pairing
ePOS print allows direct printing from ANY mobile device without the need to install or update drivers
Print speed of up to 300mm/sec
Paper width max 80mm
High-quality receipt printouts
IPX2 Rated enclosure is water resistant and easy to clean
PRINTER
PRINT METHOD Direct thermal line printing
PRINT RESOLUTION 203 x 203 dpi
PRINT FONTS (True Type) Font A: 12 x 24 dots
Font B: 10 x 17 dots
Font C: 9 x 17 dots
COLUMN CAPACITY 80mm: 48 col (font A), 57 col (font B), 64 col (font C)
58mm: 35 col (font A), 42 col (font B), 46 col (font C)
CHARACTER SIZE Font A: 1.25 x 3.00 mm
Font B: 1.13 x 3.00 mm
Font C: 0.88 x 2.13 mm
CHARACTER SET 95 Alphanumeric
18 International
128x43 pages extended graphics
Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two dimensional code: PDF417, QR Code, MaxiCode, Data Matrix, Aztec, 2D GS1 DataBar, Composite Symbology
PRINT SPEED Max. 300mm/sec
CONNECTIVITY Ethernet, Bluetooth, Wi-Fi (USB connectivity available on Ethernet and Bluetooth models)
PAPER SPECIFICATION
DIMENSIONS 79.5 + 0.5 / -1.0mm (paper width 80mm)
57.5 + 0.5 / -1.0mm (paper width 58mm)
PAPER ROLL Drop in
SENSORS Full end sensor
POWER SPECIFICATION
POWER CONSUMPTION Approx. 32.8W (operating)
Approx. 1.5W (standby)
POWER 100 – 230V AC, 50 to 60 Hz
POWER SUPLY AC Adaptor C
RELIABILITY
MTBF 360,000 hours
MCBF 65 million lines
AUTOCUTTER 2.2 million cuts
PRINTER OPTIONS
COLOUR Epson Black, Epson Ultra White
EMI STANDARD AS/NZS CISPR22 Class A, AS/NZS 4268
OVERALL DIMENSIONS 127mm (W) x 127mm (D) x 127mm (H)
WEIGHT 1.3Kg
WHAT'S IN THE BOX Printer, roll paper, AC adaptor, AC cable, spacer for 58mm paper, power switch cover
CONFIG BUILDS
C31CK50231 TM-m30III-231 Built-in USB, Ethernet, BT iOS,white
C31CK50232 TM-m30III-232 Built-in USB, Ethernet, BT iOS, black
C31CK50201 TM-m30III-201 Built-in USB, Ethernet, white
C31CK50202 TM-m30III-202 Built-in USB, Ethernet, black
OPTIONS
C32C881017 Wall Hanging Bracket for TM-m30 / TM-m30III
C32C891324 OT-WL06 Wireless LAN Dongle 5.0/2.4Ghz
COVERPLUS
1YWM30III Coverplus 1yr Service Pack TM-m30III
2YWM30III Coverplus 2yr Service Pack TM-m30III
|
