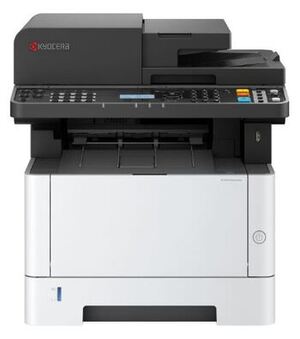

Kyocera ECOSYS, MA4000x, A4 Mono Multifunction Laser Printer



Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.



High quality, high reliability and high efficiency are essential.



General type Monochrome multifunctional for A4 format

Engine speed Up to 40 pages A4 per minute

Warm-up time Approx. 19 seconds or less from switching on

Power consumption Copying/Printing: 574.4 W, Ready-mode: 10.8 W, Sleep-mode: 0.4 W

Warranty 2 years return-to-base as standard. Optional upgrade to on-site available.



Input capacity 100-sheet multi-purpose tray; 60 – 220 g/m²; A4, A5, A6, Custom (70 x 148 mm – 216 x 356 mm). 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, Custom (105 x 148 – 216 x 356 mm).

Max. input capacity with options 850 sheets

Duplex unit Duplex functionality as standard. Double-sided printing: 60 – 163 g/m²; A4, A5, Custom (140 × 210 - 216 × 356 mm).

Output capacity Max. 150 sheets face-down with full paper detection

Document processor Dual scan document processor: 50-sheet; 50 – 160 g/m²; A4, A5, A6, Custom (100 x 148 – 216 x 356 mm).



Processor 1.0GHz

Fonts 93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 one-dimensional barcodes (e.g. EAN-8, EAN-13, EAN-128), as well as support for two-dimensional barcodes PDF417 under PRESCRIBE (PCL and other barcodes available an option)

Features “Proof and hold”*, Job storage*, Quick copy*, Private print*, Data storage method with PIN code or password*, Internet printing IPP 1.0, E-mail printing, WSD Print, EcoPrint - toner save mode, AirPrint, Mopria, Microsoft Universal Print, Job batch output, Image Refinement, Pull print, VPSX, IPP PIN Print, Kyocera Cloud Access, optional Kyocera Cloud Print and Scan selected function integration. *Optional SD/SDHC memory card is required.

Applicable OS (Print) All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, as well as other operating systems on request



Copy Max. original size A4 / Legal

Continuous copy 1 - 999

Zoom range 25 - 400 % in 1% steps

Preset magnification ratios 7 Reductions / 5 Enlargements

Image adjustments Text + Photo, Photo, Text, Chart/Map, Printed document

Digital features Multiple copies from memory, electronic sorting, blank page skip, line skip, duplex copy, 2-in-1 and 4-in-1 function, split mode, DP auto-cropping, ID card copy supporting auto crop, folded corner detection, continuous scan, priority override, Eco Print (copy) - toner save mode, specific colour removal, border erase, auto paper selection, manual and auto background density adjustment, manual and auto reduction/enlargement



Scan functionalities Scan to Email, Scan to FTP, Scan to PC (SMB), TWAIN, WIA, WSD Scan, Scan to USB Host, Distributed File System (Windows 2012 server or later), eSCL support (AirPrint, Mopria Scan, Chrome OS)

Scan speed 40 ipm (300 dpi, A4, b/w, simplex), 23 ipm (300 dpi, A4, colour, simplex), 80 ipm (300 dpi, A4, b/w, duplex), 46 ipm (300 dpi, A4, colour, duplex)

Scan features Active Directory support, LDAP over TLS, internal address book, Multi Sending - simultaneous sending to email, SMB and FTP, file separation, skip blank pages, line skip, folded corner detection, continuous scan, digital signature (PDF, Encrypted PDF)

Scan resolution 1,200 (with TWAIN and WIA driver), 600, 400, 300, 200 dpi

Max. scan size A4 / Legal

Scan File type PDF, PDF/A-1, PDF/A-2, high compressed PDF, encrypted PDF, JPEG, TIFF, (Open) XPS

Original recognition Text, photo, text + photo, light text/fine line, optimised for OCR



PF-1100 Paper feeder

Capacity in sheets 250 sheets A4

Dimensions (W x D x H) 375 × 393 × 100 mm

Paper size 60 – 163 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 mm – 216 x 356 mm)



TK-1274 Microfine toner for 10,000 pages A4. The capacity of the starter toner is 3,600 pages A4. Average continuous toner yield by ISO/IEC 19752.



Card Authentication Kit (B) AC CAK Licence - IC Card Authentication Kit access to the device (Licence)

PCL Barcode SD Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33 AC ThinPrint support (Licence)

UG-50 TPM (Trusted Platform Module)
