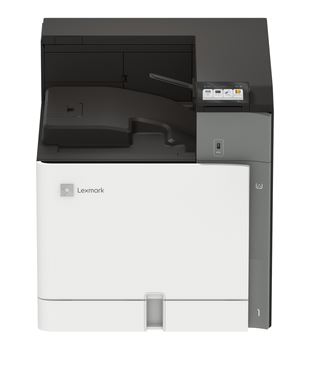

Lexmark CS963e A3 Colour Laser Printer

With the new CS963e colour A3 printer,  you get reassuring versatility, exceptional sustainability, and surprising simplicity from such sophisticated technology. Boost your productivity with vivid prints — up to 55 pages per minute (A4)*. Intuitively navigate the 4.3inch (10.9 cm) colour touchscreen,  and save money by avoiding the use of outside print shops. Effortlessly create everything your business requires, and custom configure your printer with interchangeable options tailored to your needs. And as with all Lexmark devices, you can be confident that they are reliable, sustainable, durable, costsaving and Secure by Design.



Part no. 20L9317

Print Technology Colour Laser

Function Printing

Trusted Platform Module (TPM)

Workgroup Size Large Workgroup

Display Lexmark e-Task 10.9 cm colour touch screen with audible feedback

Media Sizes Supported A6, Oficio, 7 3/4 Envelope, JIS-B4, 9 Envelope, JIS-B5, A3, Ledger, A4, Legal, SRA3, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope

Included Paper Handling 500-Sheet Output Bin, 550-Sheet Tray, 150-Sheet Multipurpose Feeder

Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B)

Size (mm - H x W x D)

643 x 592 x 660 mm

Weight 66.3 kg

Packaged Size (mm - H x W x D) 850 x 740 x 785 mm

Packaged Weight, kg 84.0 kg



Print Speed Up to:

Black: 55 ppm (A4)

Colour: 55 ppm (A4)

Print Speed Duplex Up to:

Black: 55 spm (A4)

Colour: 55 spm (A4)

Time to First Page as fast as:

Black: 7 seconds

Colour: 8.1 seconds

Black: 1200 x 1200 dpi, 4800 Colour Quality

Colour: 4800 Colour Quality, 1200 x 1200 dpi

Duplex 2-sided: Integrated Duplex

Printable Area metric: 4 mm of the top, bottom, right and left edges (within)



Media Types Supported Vinyl Labels, Labels, Card Stock, Plain Paper, Envelopes, Glossy paper, Refer to the Paper & Specialty Media Guide

Finishing Option Yes

Standard: 2

Maximum: 6

Standard: 700 pages 75 gsm bond

Maximum: 4750 pages 75 gsm bond

700 pages 75 gsm bond

Paper Output Capacity Up to:

Standard: 500 pages 75 gsm bond

Maximum: 2650 pages 75 gsm bond

Paper Weight Range Supported gsm:

60 - 300 gsm (Standard Tray)

60 - 300 gsm (Multipurpose Feeder)

Offset stacking, Stapling, Hole punching, Booklet fold and saddle stapling

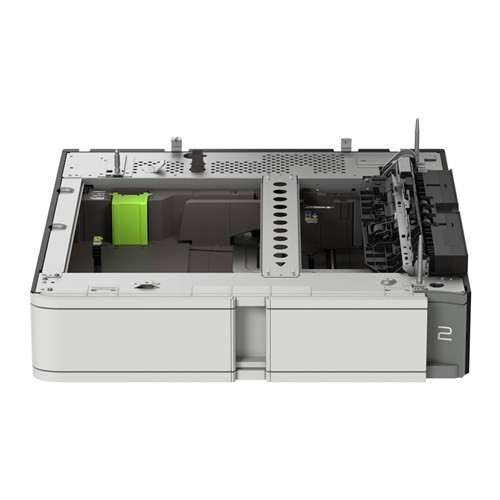

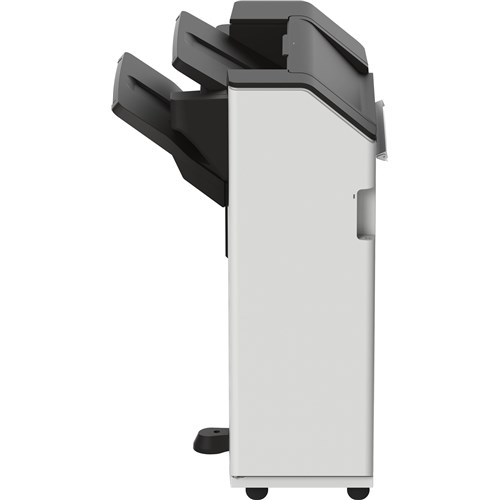

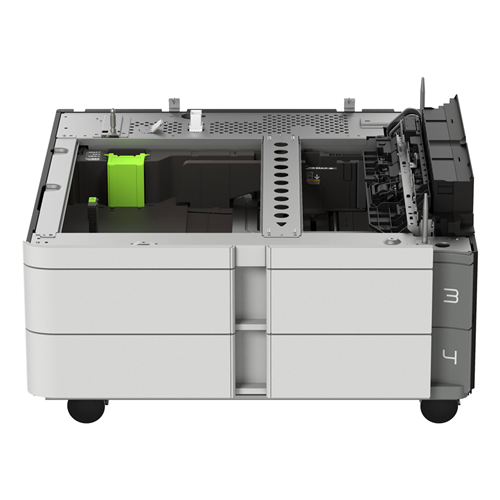

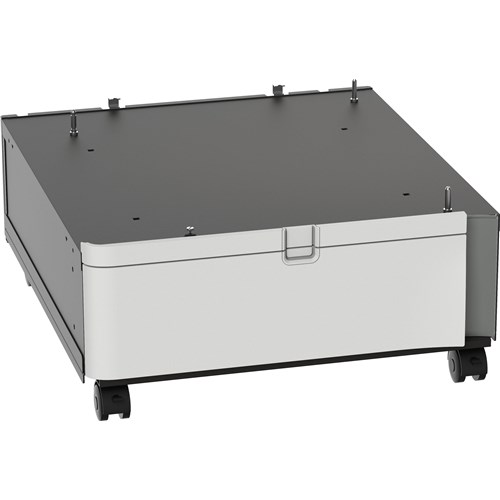

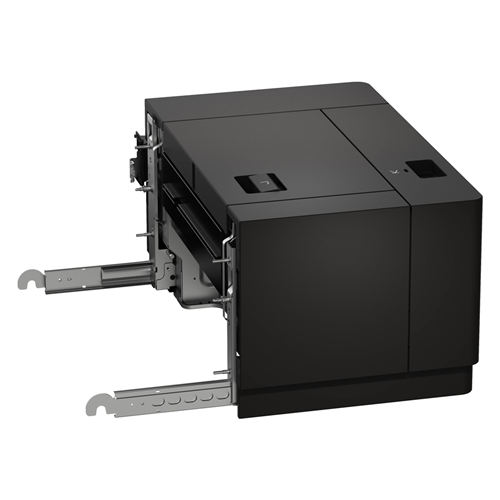

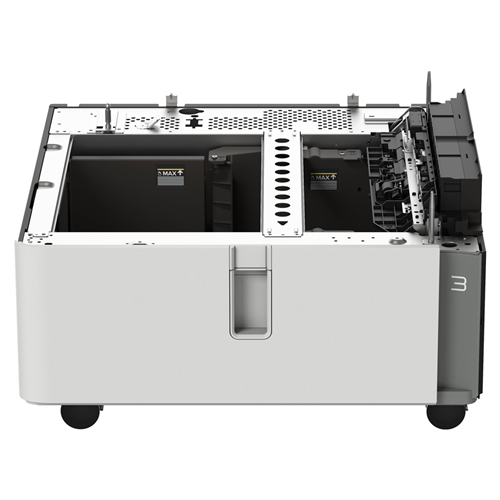

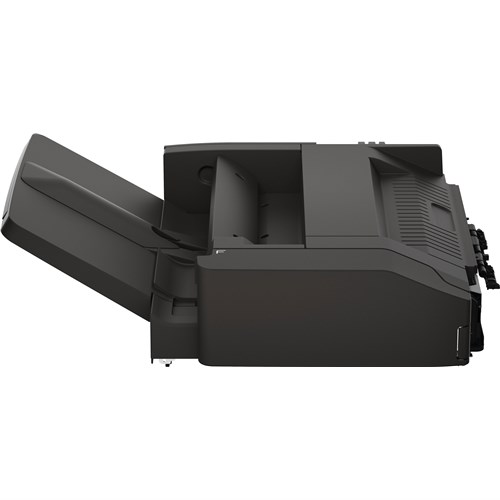

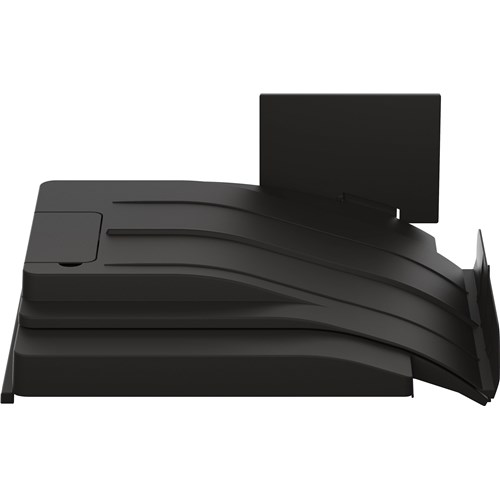

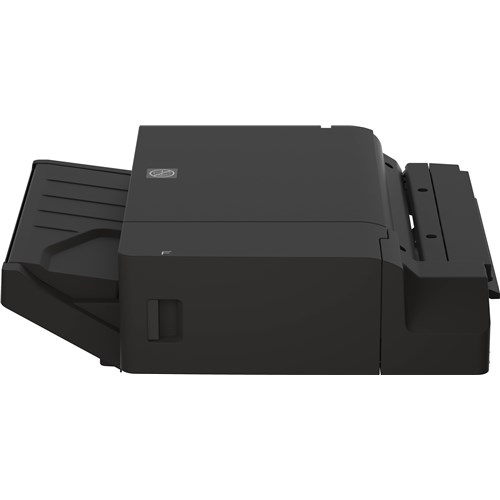

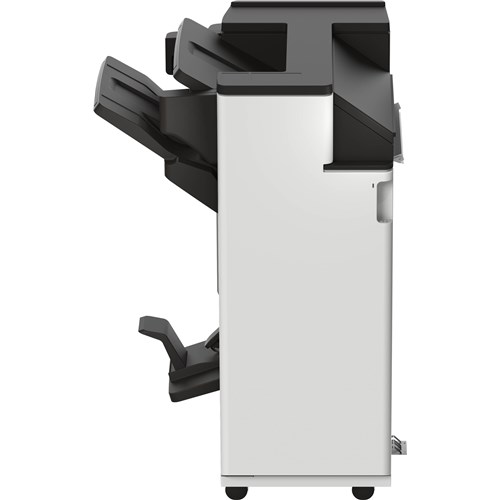

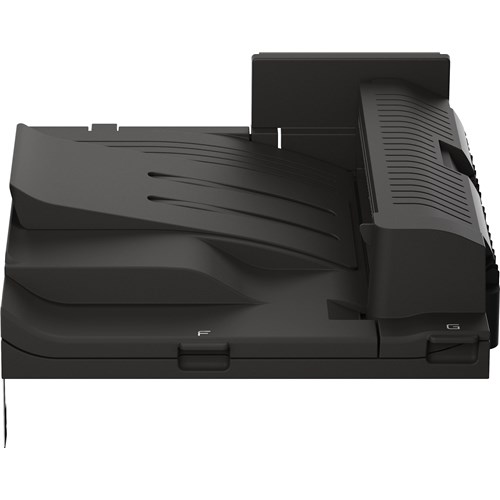

Optional Paper Handling 2,250-Sheet Booklet Staple Hole Punch Finisher, 500-Sheet Staple Offset Finisher, Folding Paper Transport Unit, 1,250-Sheet Staple Hole Punch Finisher, Offset Stacker, 1,500-Sheet High-Capacity Tray, Paper Transport Unit, 2000-Sheet Tandem Tray, Cabinet, 2 x 550-Sheet Tray, 550-Sheet Tray

Recommended Monthly Page Volume 7,000 - 50,000 pages

Maximum Monthly Duty Cycle Up to: 270 000 pages per month

A3 Yes

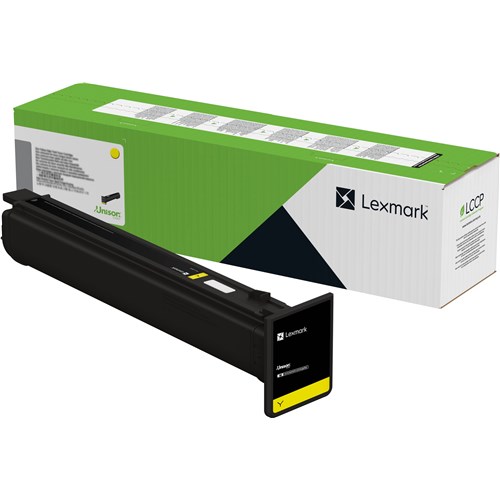

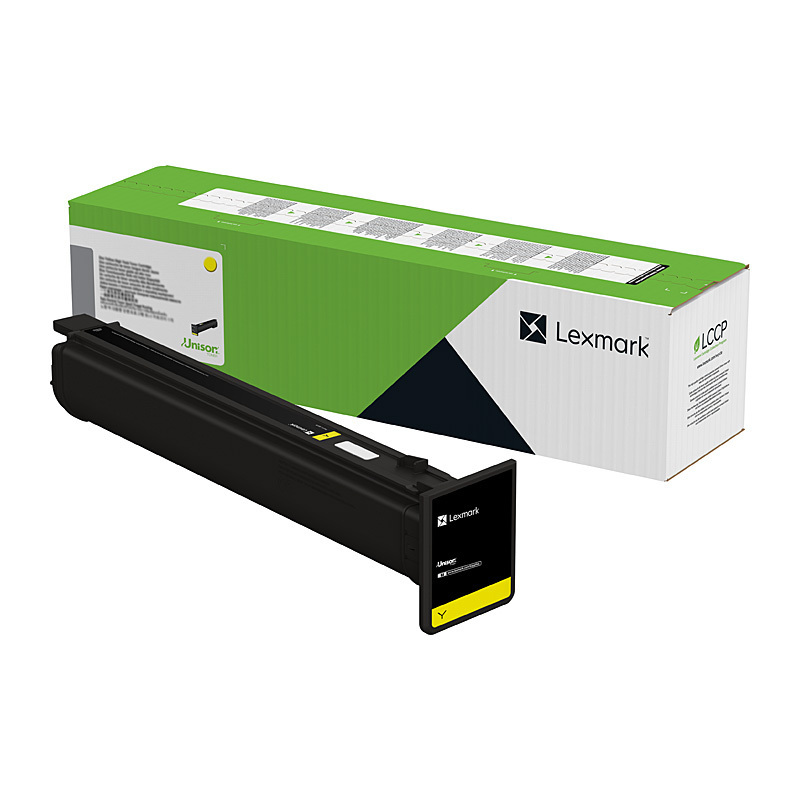

Laser Cartridge Yields up to:

46,9005-page Colour (CMY) Cartridges

47,7005-page Black Cartridge

Imaging Unit Estimated Yield Up to:

225,000 (black) and 250,000 (colour) pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

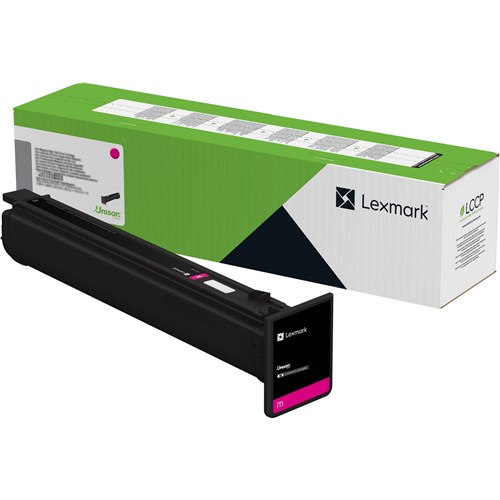

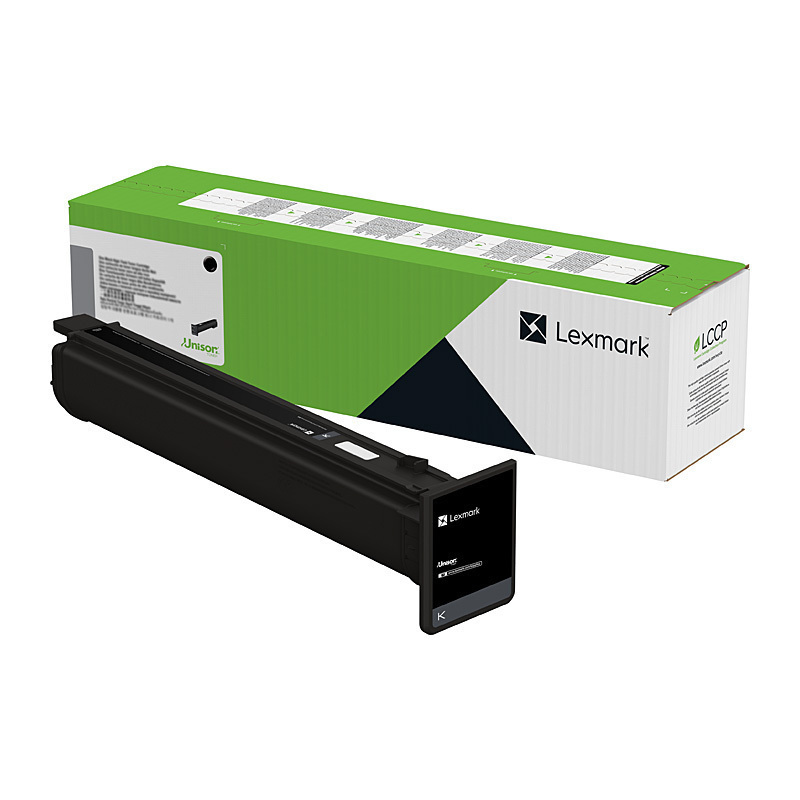

15,0005-page Black Toner Cartridge5, 12,0005-page Colour (CMY) Starter Toner Cartridges5

Replacement Cartridges: Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.



Processor Speed Quad Core, 1.2 GHz

Standard: 4 GB

Maximum: 4 GB

Hard Disk Intelligent Storage Drive available; Magnetic Hard Disk available

Printer Languages Standard:

PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PCL 5 Emulation, PostScript 3 Emulation, PDF 1.7 emulation, Direct Image

Fonts and Symbol Sets 2 PCL 5/6 bitmap fonts, 94 scalable PCL 5/6 fonts, 163 scalable PostScript fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts

Touch Screen Display Yes



Direct USB Yes

Ethernet Network Yes

Wireless Yes

Network Protocol Support IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP

Network Printing Methods FTP, LPR, Direct IP (Port 9100), Pull Printing, Thin Print, Microsoft Web Services WSD, Enhanced IP (Port 9400), IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)

Network Management Protocols DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP

Network Security SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown

Optional Local Ports Internal 1284-B Bidirectional Parallel, Internal RS-232C serial

Optional Network Ports MarkNet N8230 Fiber Ethernet Print Server

Wireless Network WPA™ and WPA2™ - Personal, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, WPA2™ - Personal



Microsoft Windows Operating Systems Supported Windows Server 2008 x64 running Terminal Services, Windows 11, Windows 10, Windows Server 2008 x64, Windows Server 2008 running Terminal Services, Windows 8.1, Windows Server 2022, Windows Server 2008 R2 running Terminal Services, Windows 8, Windows Server 2008, Windows Server 2008 R2, Windows 8 x64, Windows 7 x64, Windows Server 2012, Windows Server 2016, Windows Server 2012 R2, Windows Vista x64, Windows Server 2019, Windows Vista, Windows 7

Apple Operating Systems Supported  Support is provided through AirPrint and AirScan only

Android Operating System Support Support is provided through Mopria® Print Service and Mopria Scan.

Linux Operating Systems Supported Ubuntu 22.04, Fedora 36, Debian 11, SUSE Linux Enterprise Server 12 SP5, Debian 10, Red Hat Linux 9.1, Ubuntu 20.04, OpenSUSE 15.4, OpenSUSE 15.2, Red Hat Linux 8.7, Fedora 37, SUSE Linux Enterprise Server 15 SP4

Citrix MetaFrame Microsoft Windows Server 2012 R2 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Datacenter Edition running Citrix XenApp 7.5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, Microsoft Windows Server 2012 Essentials running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Foundation running Citrix XenApp 6.0, 6.5, Microsoft Windows Server 2012 Standard running Citrix XenApp 6.0, 6.5

Novell Operating Systems Supported Novell Open Enterprise Server 2 (SP3) on SuSE Linux Enterprise Server 10 SP4 (x86 and x64) 3, Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell NetWare 6.5 Open Enterprise Server, Novell Open Enterprise Server 15 (SP1) on SuSE Linux Enterprise Server 11 SP4 (x86 and x64), Novell Open Enterprise Server 11 (SP3) on SuSE Linux Enterprise Server 12 SP1 (x86 and x64)

Other Operating Systems Supported  Virtually any platform supporting TCP/IP



ENERGY STAR Yes

ENERGY STAR Typical Electricity Consumption TEC:

0.8 kilowatt-hours per week

Operating: 14 dBA (Idle)

52 dBA (Print)

Duplex Print Noise Level Operating: 55 dBA

Average Power 0.2 watts (Hibernate Mode)

1.1 watts (Sleep Mode)

45.5 watts (Ready Mode)

811 watts (Printing)

Specified Operating Environment Altitude: 0 - 2896 metres

Humidity: 15 to 80% Relative Humidity

Temperature: 10 to 32.2°C (50 to 90°F)

Product Certifications ENERGY STAR®, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC / KCC Mark, RCM DoC, ErP - EcoDesign, CCC, UKCA DoC, Blue Angel / DE-UZ 219, CECP, CEL, ECMA-370, TED, SII, TER, UL-AR, GS Mark, ISO-9296, EPEAT Silver, Mopria Certified®



Software and Documentation CD

Lexmark CS963e colour laser printer.

Warranty Information (region/country dependent)

Worldwide Safety Information Sheet

Worldwide Safety Stability Sheet

Power Cable (Country Dependent)

Up to 5,000*-page return programme starter cartridge.

Up to 225,000** pages black and up to 250,000** pages colour return programme imaging unit

Worldwide Printer Set-up Sheet (wordless)



Country of Origin Rest of World - PRC, North America & TAA Compliant - Mexico

Product Warranty 1-Year Onsite Repair, Next Business Day
